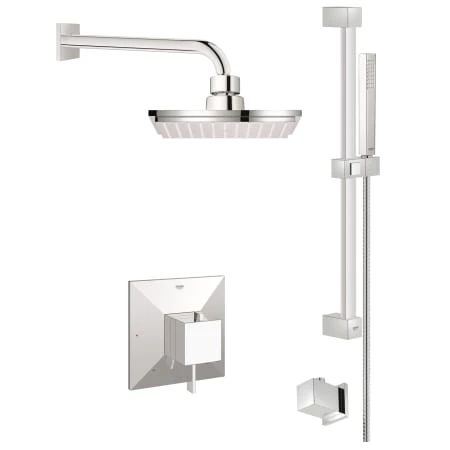

Grohe Allure Brilliant Pressure Balanced Shower System with Rain Shower Head, Handshower, Slide Bar, Wall Supply, Integrated Diverter and Volume Control – Rough-In Valve Included

All products in this package are covered under Grohe’s limited lifetime warranty

What’s Included:

• 19 786 Pressure Balanced Valve Trim
• 27 705 Rain Shower Head
• 27 891 Slide Bar & Handshower
• 27 489 Shower Arm

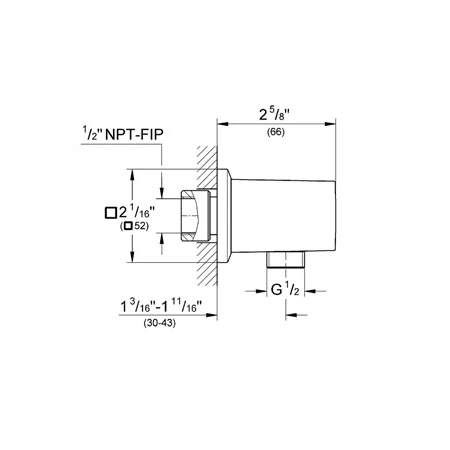

• 26 634 Wall Supply
• 35 026 Rough-In Valve

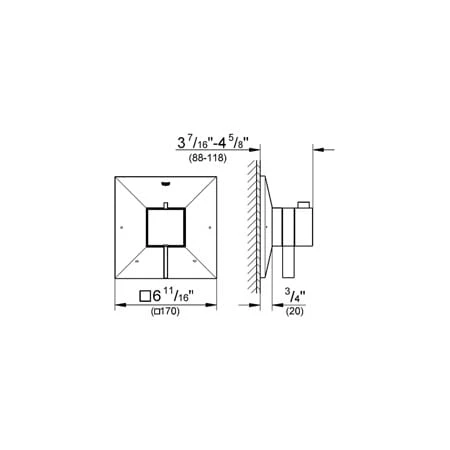

19 786 Pressure Balanced Valve Trim:

• Dual function – one handle controls temperature of water and one handle controls volume of water and transfer of water flow
• 2-way diverter transfers water flow from shower head to handshower
• 100° integrated scald guard button on valve trim
• Lever handle for volume and transfer of water, grip handle for temperature of water
• Features Grohe’s SilkMove® cartridge
• Trim Dimensions: 6-11/16″ H x 6-11/16″ W
• Depth: 3-7/16″ – 4-5/8″ (adjustable from wall)
• Required rough-in valve is included

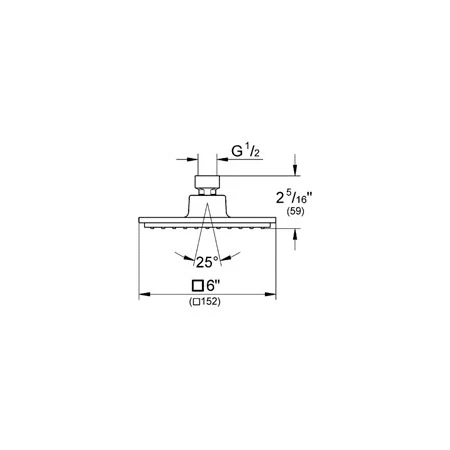

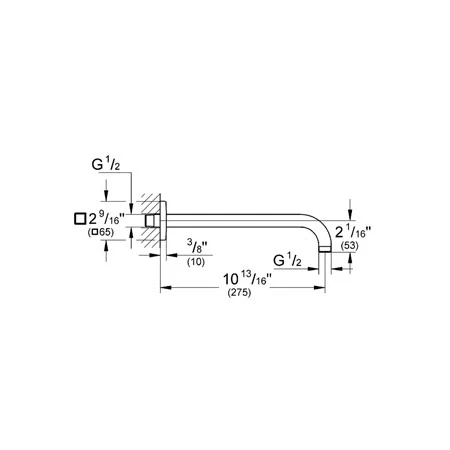

27 705 Rain Shower Head / 27 489 Shower Arm:

• Features one spray pattern – Rain
• Equipped with Grohe’s SpeedClean and DreamSpray technologies
• Rotates 25° in any direction for maximum coverage
• Flow Rate: 2.5 GPM (gallons-per-minute)
• Shower Head Dimensions: 6″ W x 6″ D
• Shower Head Height: 2-5/16″
• Shower Arm Reach: 10-13/16″

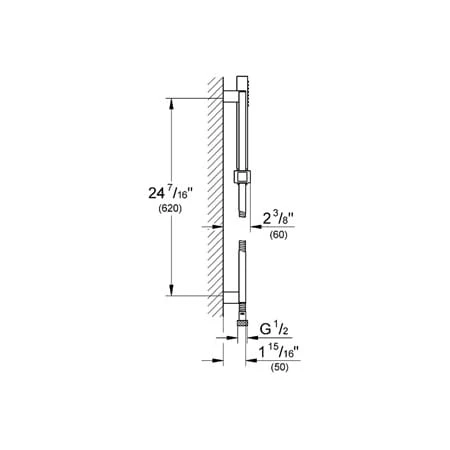

27 891 Slide Bar & Handshower:

• Handshower features one spray pattern – Normal
• Slide bar features a swivel holder to adjust angle of handshower
• Handshower features Grohe’s SpeedClean, DreamSpray, and CoolTouch technologies
• Handshower Flow Rate: 2.5 GPM (gallons-per-minute)
• Slide Bar Length: 24-7/16″ (center-to-center distance between mounting holes)
• Hose Length: 69″
• Slide bar package includes wall supply (27 708)
