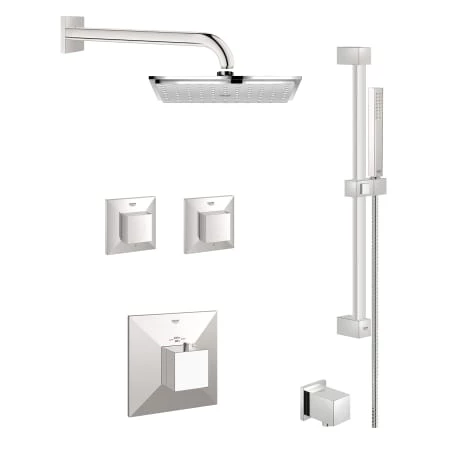

Grohe Allure Brilliant Thermostatic Shower System with Rain Shower Head, Handshower, Slide Bar, and Volume Controls – All Valves Included

All products in this package are covered under Grohe’s limited lifetime warranty

What’s Included:

• 19 795 Custom Thermostatic Valve Trim
• 27 480 Rain Shower Head
• 27 891 Slide Bar & Handshower
• 27 489 Shower Arm

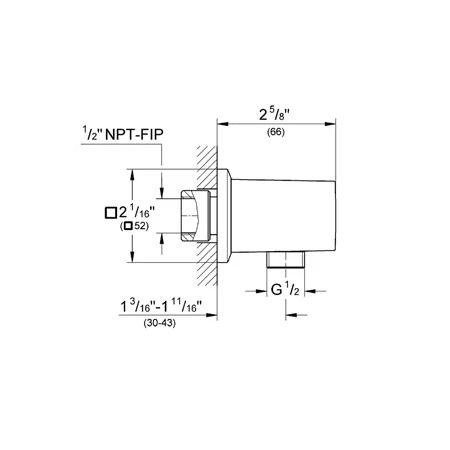

• 26 634 Wall Supply
• (2) 19 797 Volume Control Trims

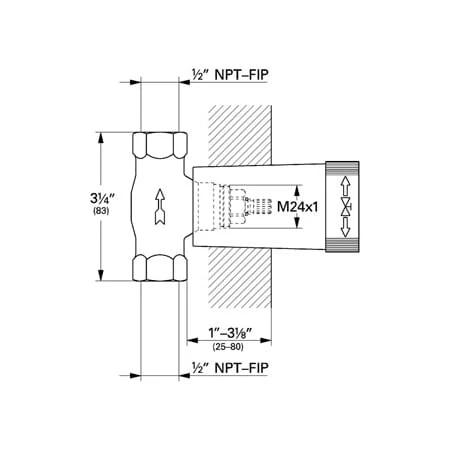

• (2) 35 029 Volume Control Valves
• 35 026 Rough-In Valve

19 795 Custom Thermostatic Valve Trim:

• Single function – dial controls temperature of water
• 100° integrated scald guard button on valve trim
• Features Grohe’s TurboStat® technology
• Trim Dimensions: 6-11/16″ H x 6-11/16″ W
• Depth: 3-7/16″ – 4-5/8″ (adjustable from wall)
• Required rough-in valve is included

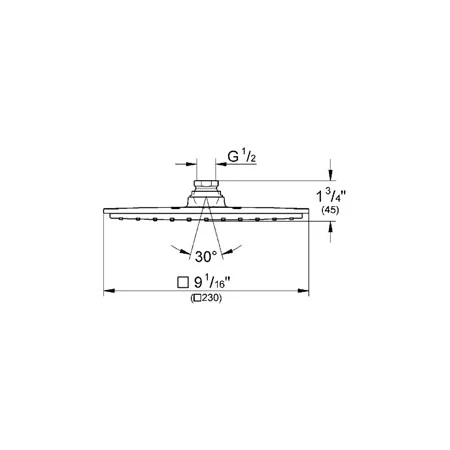

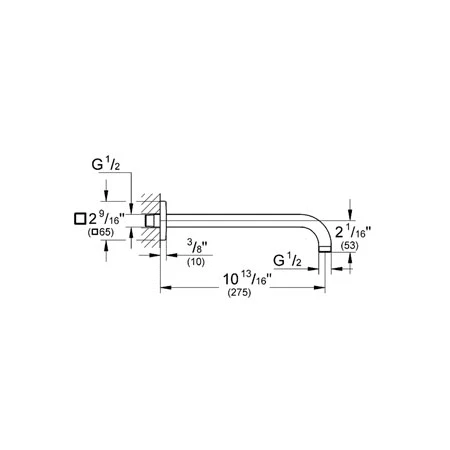

27 480 Rain Shower Head / 27 489 Shower Arm:

• Features one spray pattern – Rain
• Equipped with Grohe’s SpeedClean and DreamSpray technology
• Rotates 30° in any direction for maximum coverage
• Flow Rate: 2.5 GPM (gallons-per-minute)
• Shower Head Dimensions: 9-1/16″ W x 9-1/16″ D
• Shower Head Height: 1-3/4″
• Shower Arm Reach: 10-13/16″

27 891 Slide Bar & Handshower:

• Handshower features one spray pattern – Normal
• Slide bar features a swivel holder to adjust angle of handshower
• Handshower features Grohe’s SpeedClean, DreamSpray, and CoolTouch technologies
• Handshower Flow Rate: 2.5 GPM (gallons-per-minute)
• Slide Bar Length: 24-7/16″ (center-to-center distance between mounting holes)
• Hose Length: 69″
• Slide bar package includes wall supply (27 708)

19 797 Volume Control Trim:

• Package of 2
• Depth (From Wall): 1-9/16″
• Metal grip handle style
• All rough-in valves are included with trims
