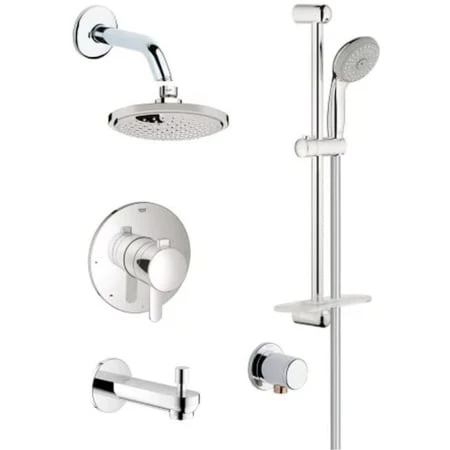

Grohe Europlus Pressure Balanced Shower System with Rain Shower Head, Handshower, Slide Bar, Wall Supply, Tub Spout, Integrated Diverter and Volume Control – Rough-In Valve Included

All products in this package are covered under Grohe’s limited lifetime warranty

What’s Included:

• 19 881 Pressure Balanced Valve Trim
• 27 492 Rain Shower Head
• 28 436 Slide Bar & Handshower
• 27 414 Shower Arm

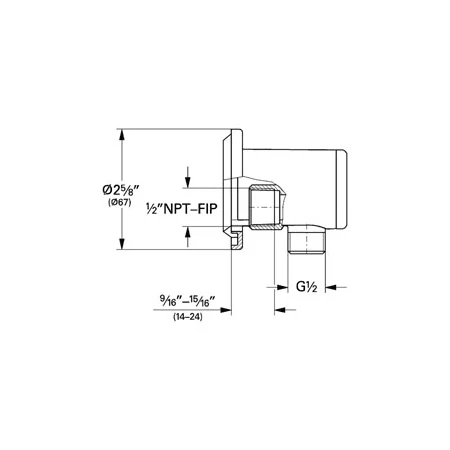

• 28 627 Wall Supply
• 13 273 Diverter Tub Spout
• 03 671 Twin Ell
• 35 026 Rough-In Valve

19 881 Pressure Balanced Valve Trim:

• Dual function – one handle controls temperature of water and one handle controls volume of water and transfer of water flow
• 2-way diverter transfers water flow from shower head to handshower
• 100° integrated scald guard button on valve trim
• Features Grohe’s SilkMove® cartridge
• Trim Diameter: 6-11/16″
• Depth: 3-3/16″ – 4-3/8″ (adjustable from wall)
• Required rough-in valve is included

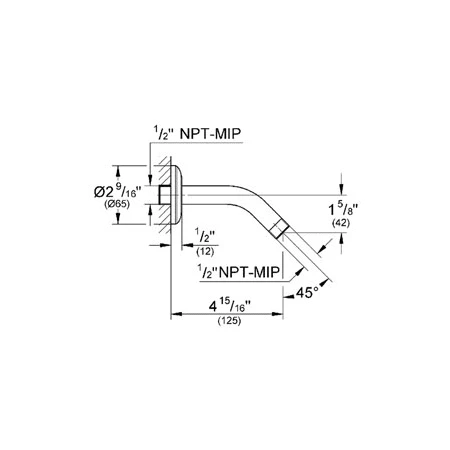

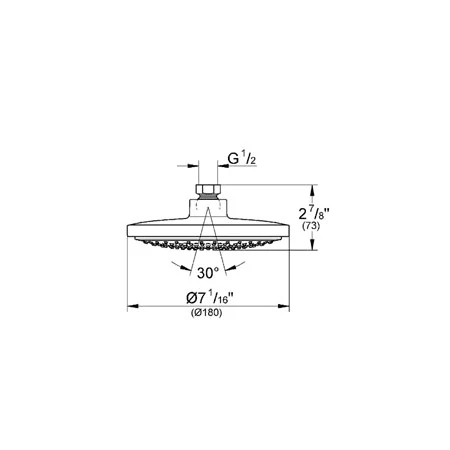

27 492 Rain Shower Head / 27 414 Shower Arm:

• Features one spray pattern – Rain
• Equipped with Grohe’s SpeedClean and DreamSpray technologies
• Rotates 30° in any direction for maximum coverage
• Flow Rate: 2.5 GPM (gallons-per-minute)
• Shower Head Diameter: 7-1/16″
• Shower Head Height: 2-7/8″
• Shower Arm Reach: 4-15/16″

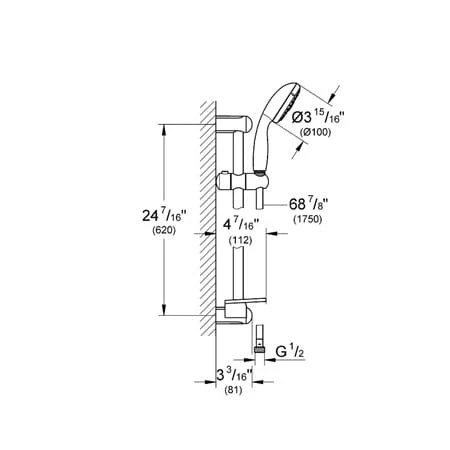

28 436 Slide Bar & Handshower:

• Handshower features four spray patterns
• Slide bar features a swivel holder to adjust angle of handshower
• Integrated soap dish increases storage space in the shower
• Handshower features Grohe’s SpeedClean and DreamSpray technologies
• Handshower Flow Rate: 2.5 GPM (gallons-per-minute)
• Slide Bar Length: 24-7/16″ (adjustable center-to-center distance between mounting holes)
• Hose Length: 69″
• Slide bar package includes wall supply (28 627)

13 273 Diverter Tub Spout:

• Classic diverting tub spout allows for more options by diverting at the valve trim and the spout
• Features flow control
• Spout Reach: 6-11/16″
• Connection Type: 1/2″ NPT-FIP
